SSS Loaded Pickguard - Squier/MIM/MIA Fender Strat
Introducing the Lambertones Loaded Pickguard — fully wired, drop-in performance.
(1) pre-wired pickguard + (1) neck pickup + (1) middle pickup + (1) bridge pickup.
Triple Shot HSS Loaded Pickguard — Complete Control, Zero Guesswork

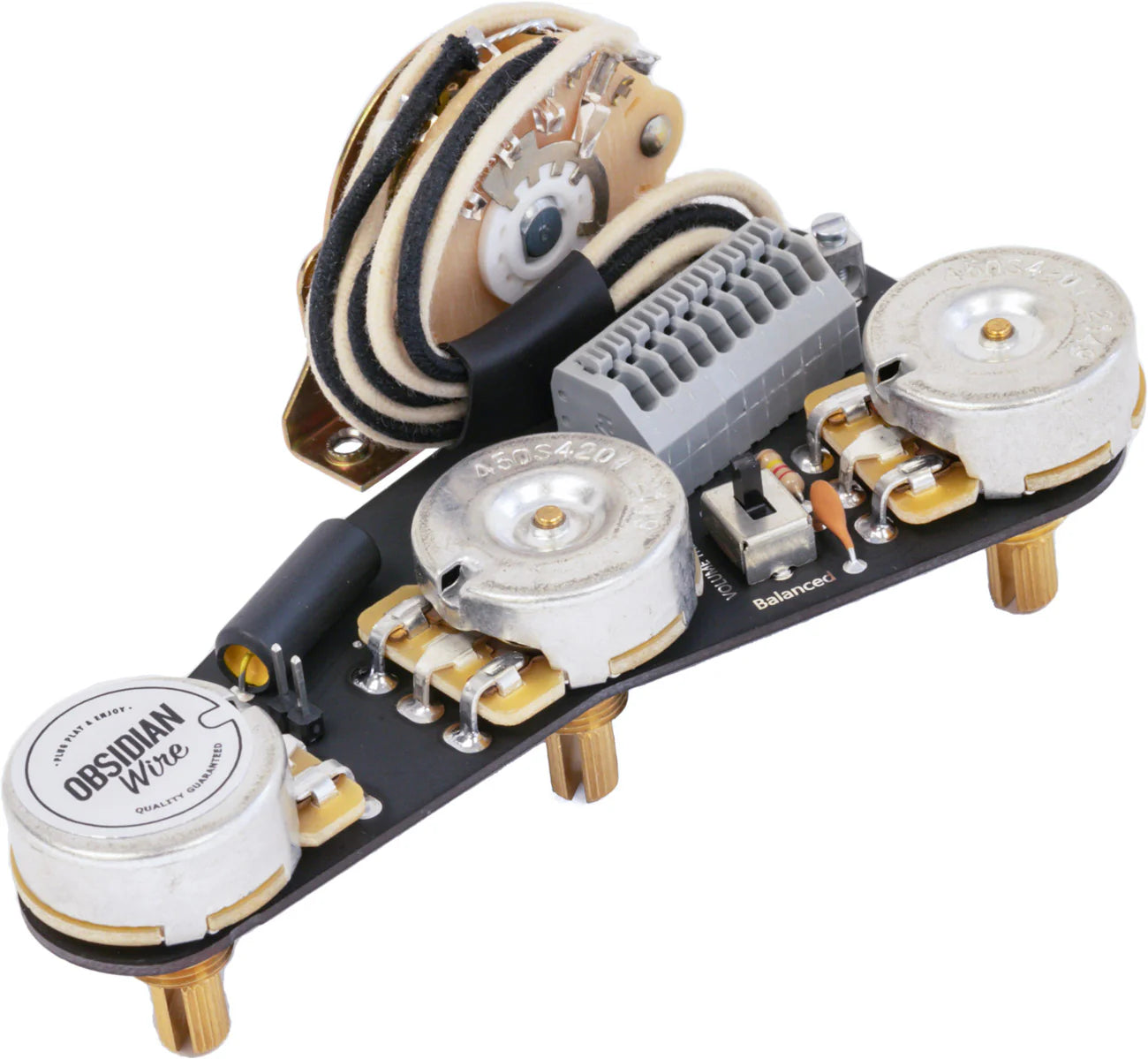

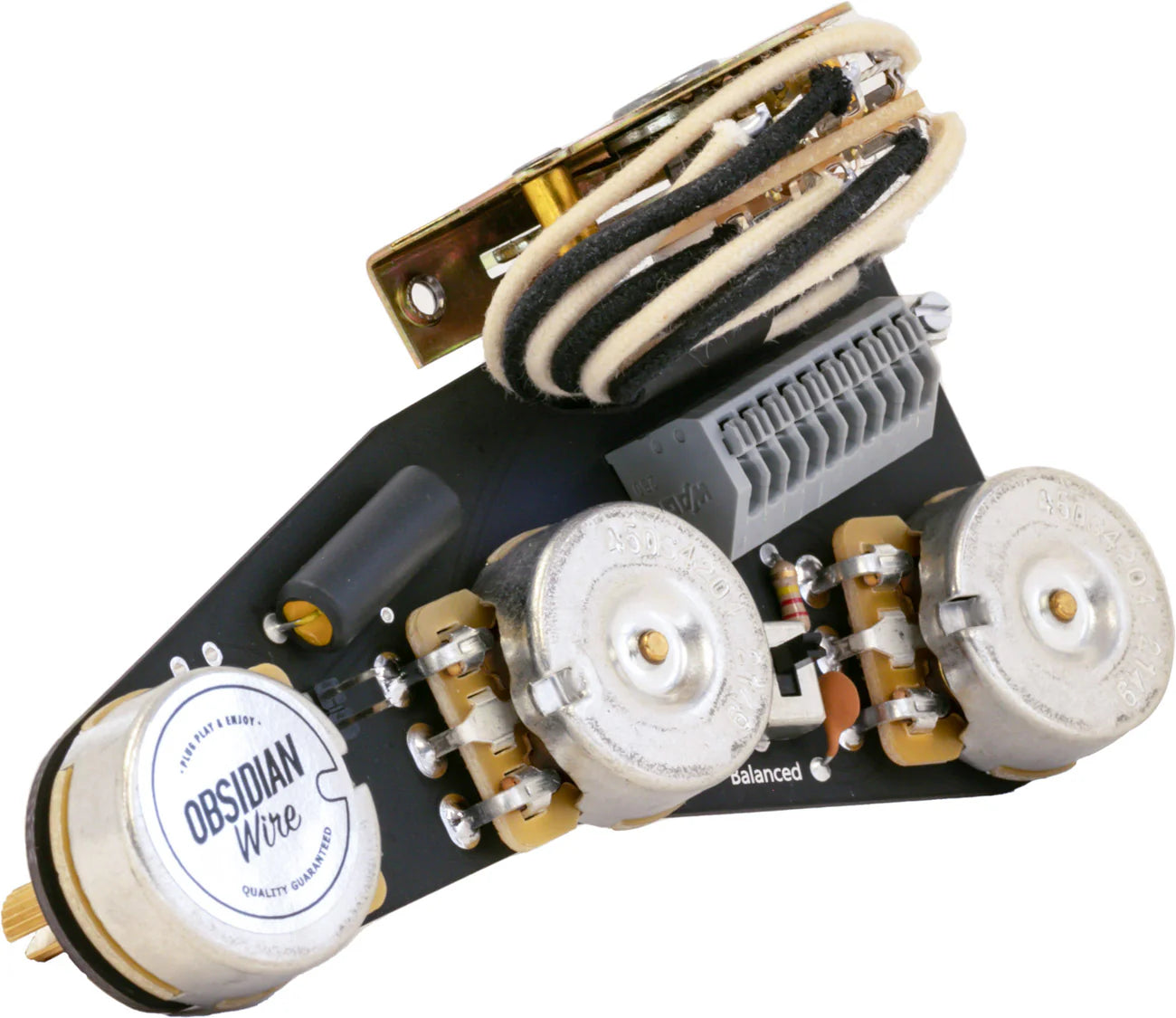

The Triple Shot SSS Loaded Pickguard takes everything you love about our pickup sets and installs it into a fully assembled, ready-to-drop-in system, utilizing a custom-designed solder-free wiring harness from Obsidian Wiring with a switchable treble bleed circuit, eliminating wiring complexity while maximizing tonal performance.
Built with our Triple Shot single coils set, this setup delivers the same clarity, balance, and responsiveness you expect — now with seamless installation and consistent results every time.
Expect classic Strat-style articulation in all 5 positions with hum-cancellation in both positions 2 and 4. From clean tones to driven textures, this system is designed to respond to your playing, not fight it.

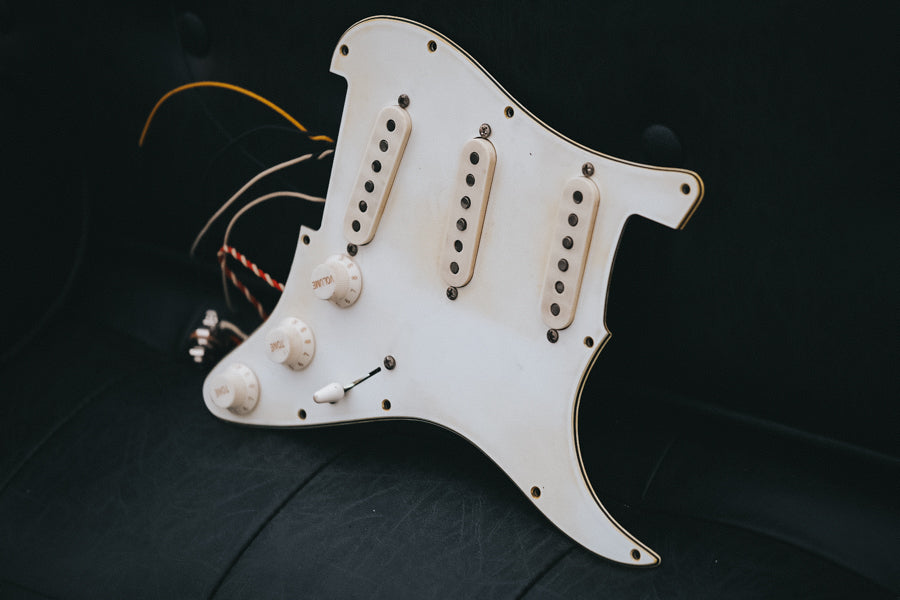

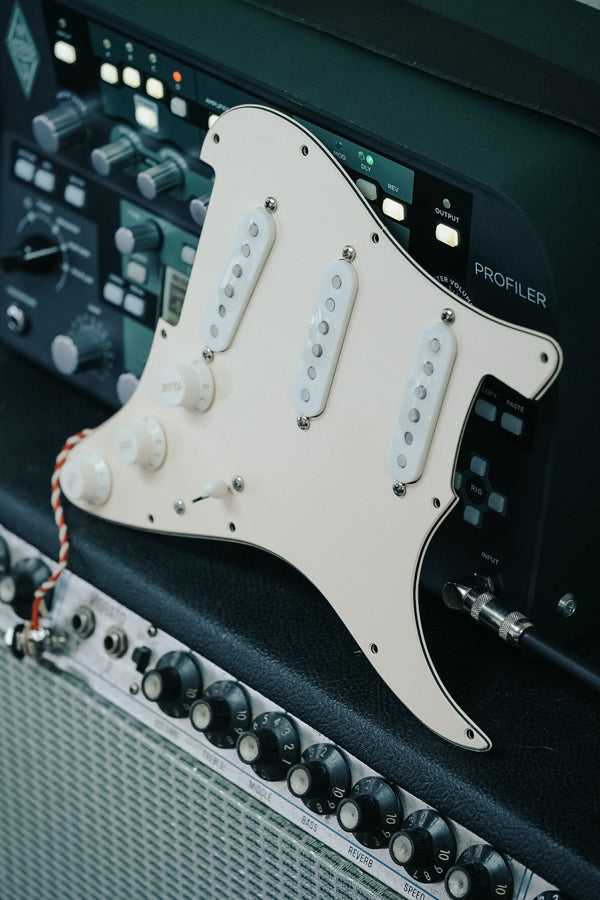

- Fully wired, drop-in pickguard assembly for Strat-style guitars (excluding Elite strat model)

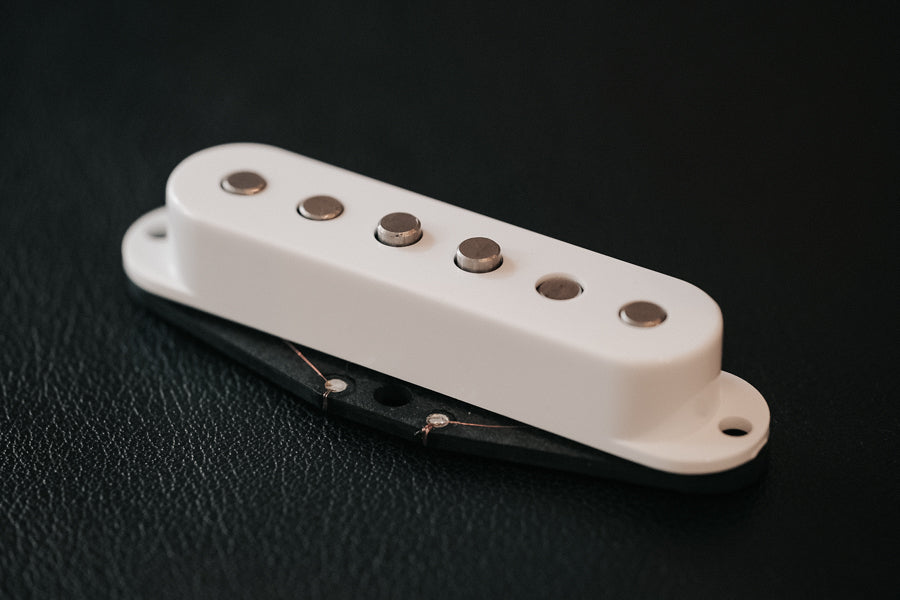

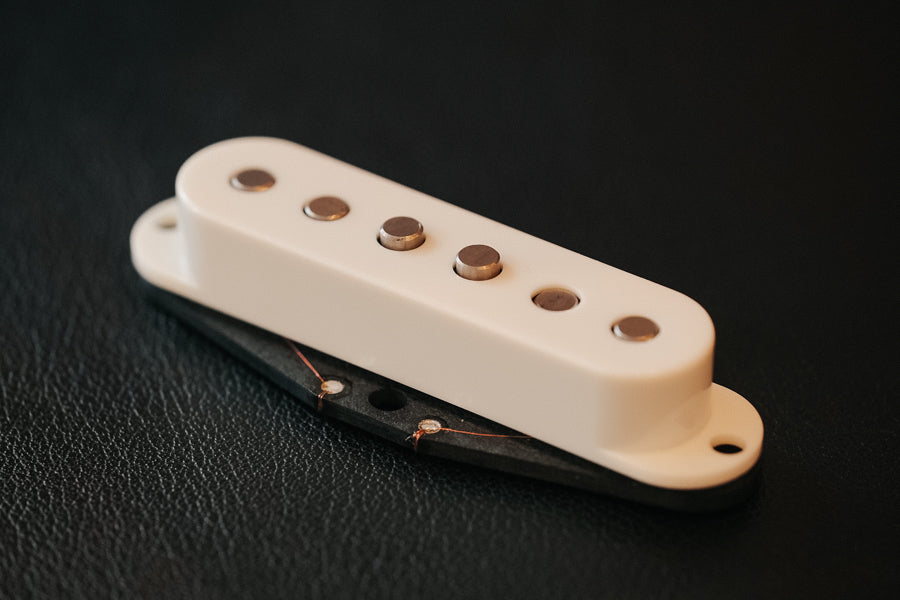

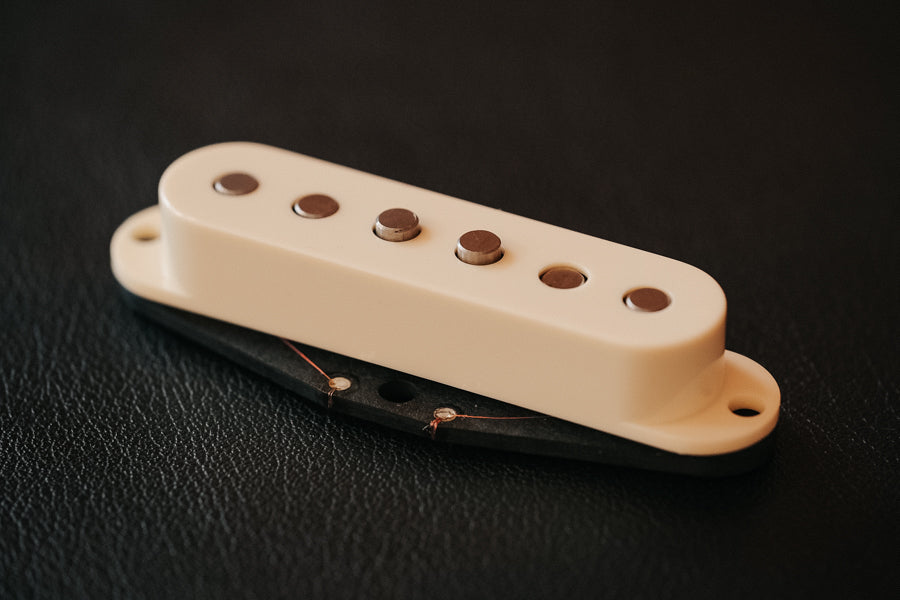

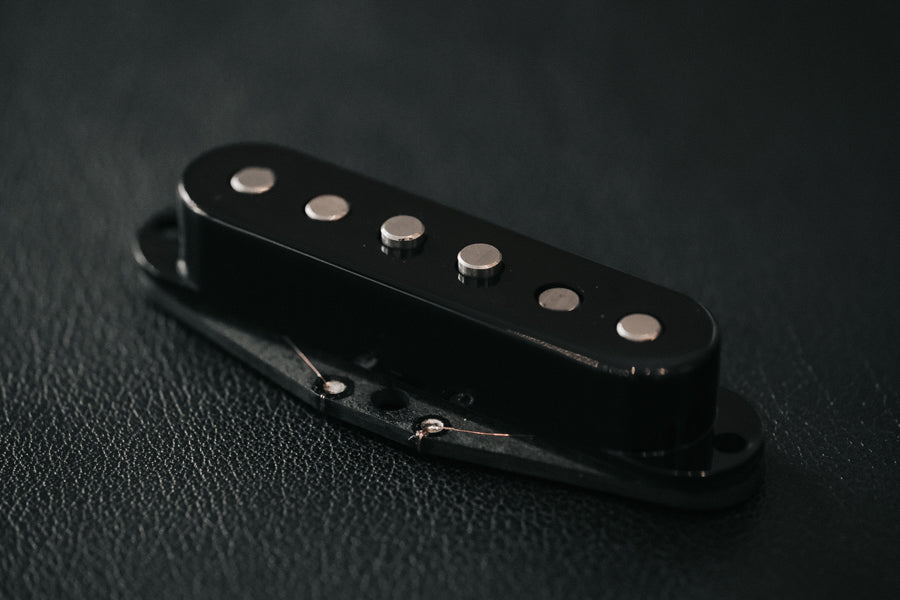

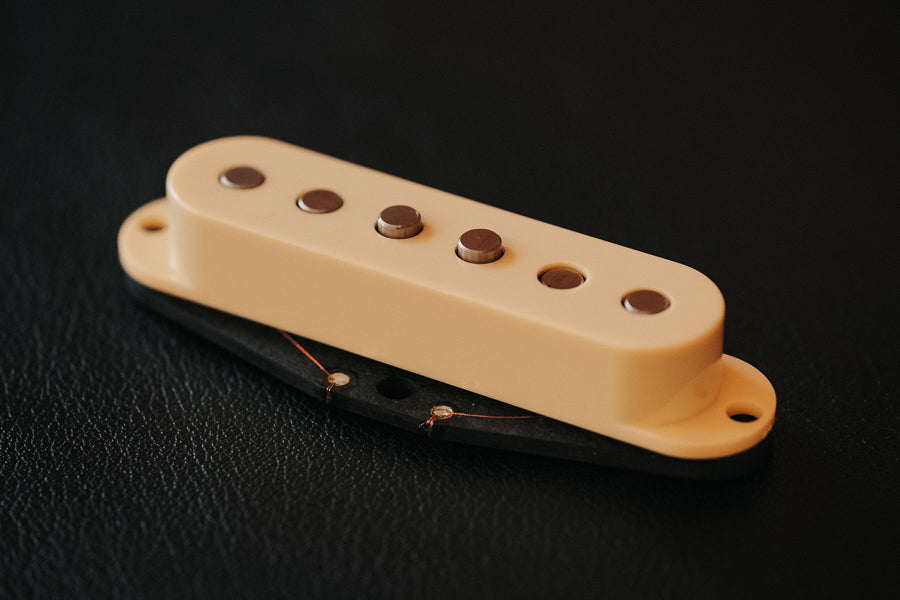

- Triple Shot single coils SSS set
- Nickel mounting hardware
- Professionally wired for optimal performance and consistency
- Hum-cancelling in positions 2 and 4
- Ideal for players who want a premium tone experience without the installation time
- IMPORTANT - Compatible with Squier, MIM, and MIA Fender Stratocasters that have a SSS pickup pattern.
No soldering. No second-guessing. Just plug in and play.
One upgrade. Every tone you need.
Choose options
Technical Specs
3.6k DCR
Polarity: North
String Spacing: 52mm
4.1k DCR
Polarity: South
String Spacing: 52mm
Single Coil
3.95k DCR - Triple Shot Bridge
Polarity: North
String Spacing: 52mm
Humbucker
4.35k DCR - Crema | 6.05k DCR - Grinder
Polarity: South
String Spacing: 50mm
- If you select the HSS or HSH configuration, the humbucker will automatically come with our 4-wire configuration for coil-splitting capabilities.
- Choose FLAT Magnet Radius for a neck radii between 9.5"-16"+.
- Choose STAGGERED magnet radius for a neck radii between 7.25-9.5"
- HSS Wiring Color Codes:
Black: Ground
Bare: Ground
White: Screw coil finish (can be soldered to red for standard humbucker sound)
Red: Slug coil finish (can be soldered to white for standard humbucker sound)
Green: Hot to the switch
drop in
tone ready
Our loaded pickguards come tested and fully-assembled. Simply solder your guitars body/bridge ground to the new pickguard, attach the output jack, and you're done!
let us do the hard part
dialed in
With a Lambertones Loaded Pickguard, all you have to do it drop it in. Let us do the hard part with 99% of all the critical solder points, shielding, cable routing, etc - and you can enjoy the best part; unbelievable guitar tone.
Designed to be Different
Precision Wound
We fully believe a product should be able to stand on its own, where the location of manufacturer doesn't automatically qualify/disqualify it from a perceived quality. That said, we're proud to design, manufacture, wind, fulfill in house here at our shop in Southern California.
Made in the usa
We fully believe a product should be able to stand on its own, where the location of manufacturer doesn't automatically qualify/disqualify it from a perceived quality. That said, we're proud to design, manufacture, wind, fulfill in house here at our shop in Southern California.
Crafted with care
Premium Materials
All Triple Shot sets utilize in-house laser-cut vulcanized fiberboard for each bobbin. Each magnet is individually tapered to a modern edge.
Flat and Staggered magnet options for the appropriate neck radius for an optimal tonal experience.
Flexible Application
Our Triple Shot uses the highest quality possible pre-tinned cloth push-back wire from Gavitt to protect your signal chain from the very beginning.
With the HSS or HSH configuration, you're getting fully-shielded 4-wire conductor to allow for the ultimate in wiring possibility for coil-splitting if desired.
Shipped with style
Premium Packaging
Every pickup set comes in its own premium box with laser cut foam ensuring a snug and secure transport. Included polishing cloth helps keep those new covers nice and shiny.
Recently viewed products
love your tone. guaranteed.
If you don’t love your new tone, we will take your Lambertones back and refund your purchase within 90 days of their delivery.
