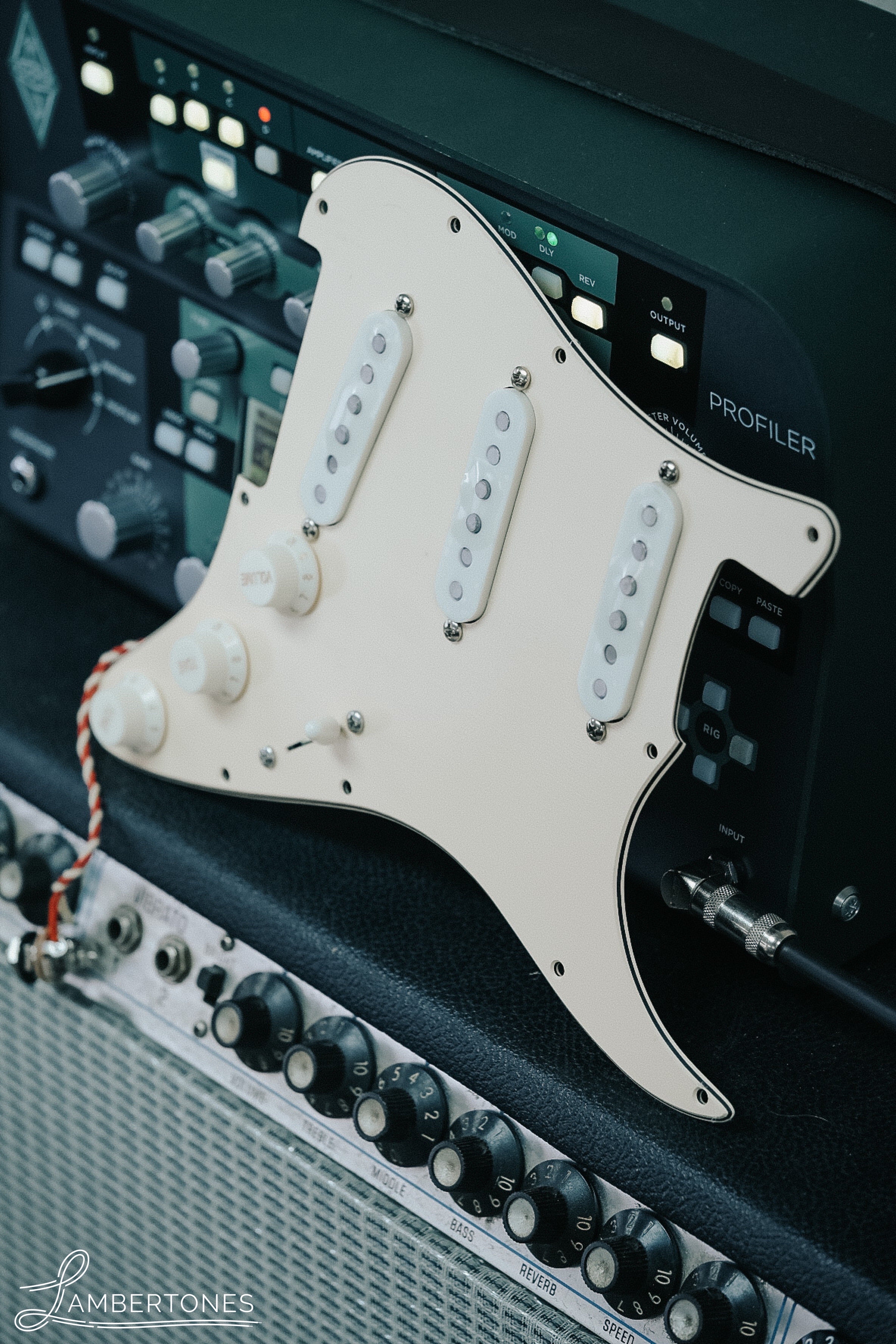

Stratocaster Loaded Pickguard
The ultimate way to experience Lambertones.

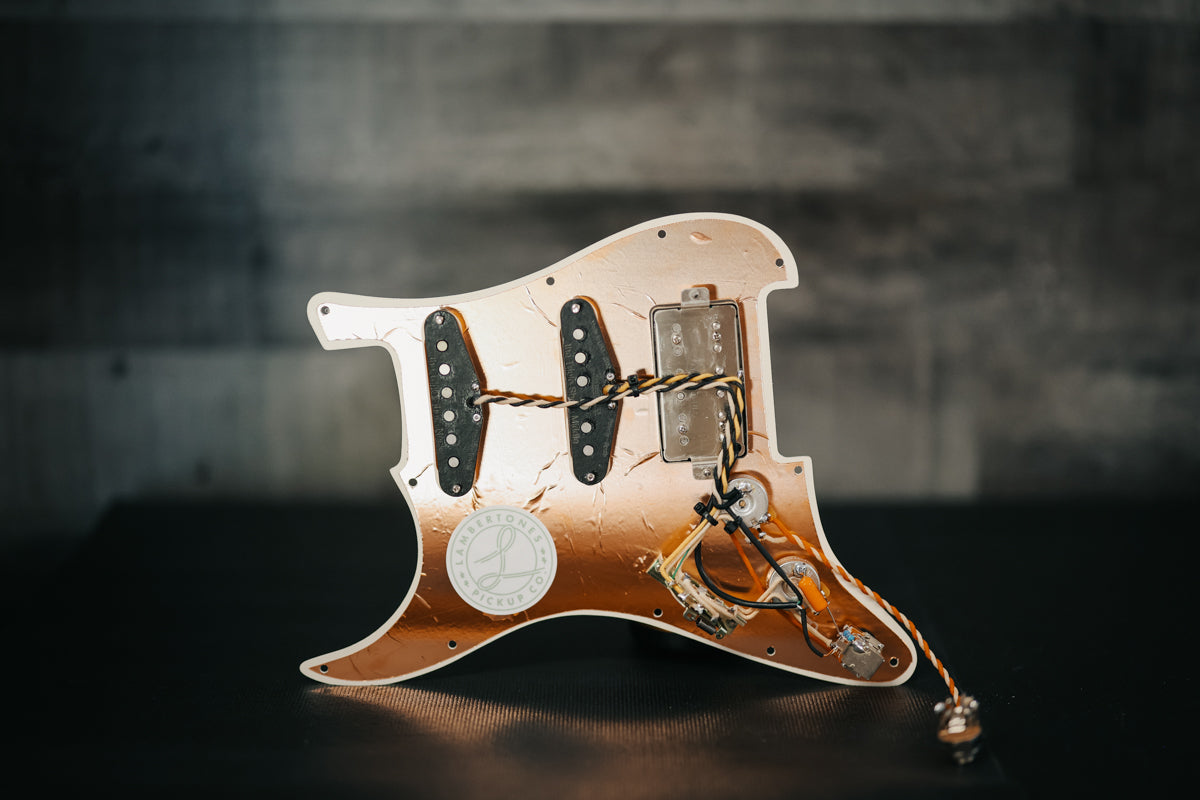

Below are specs and explanations of the different wiring harness variations available based on the SSS or HSS configuration chosen. All loaded pickguard come standard with full-copper shielding.

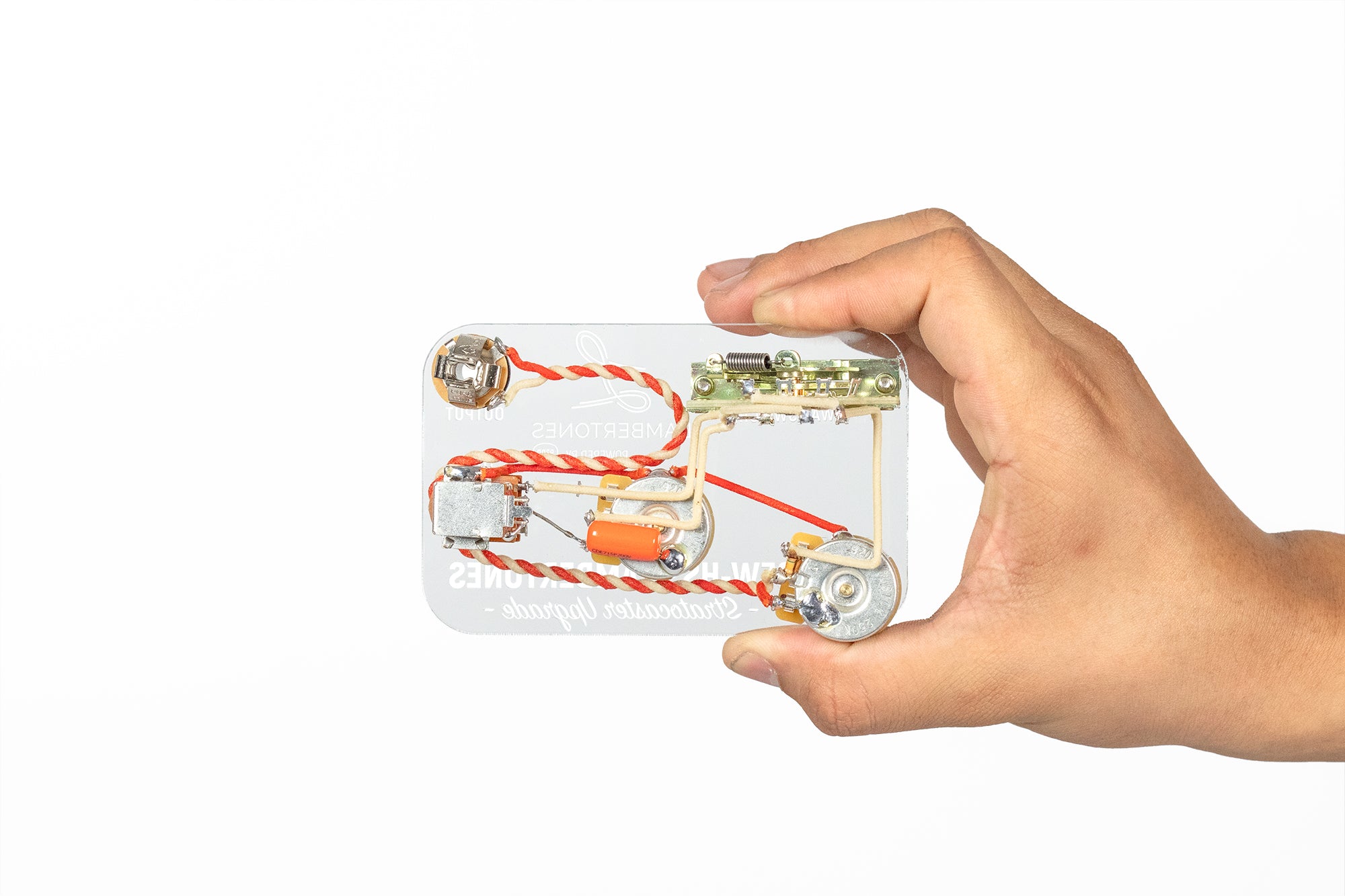

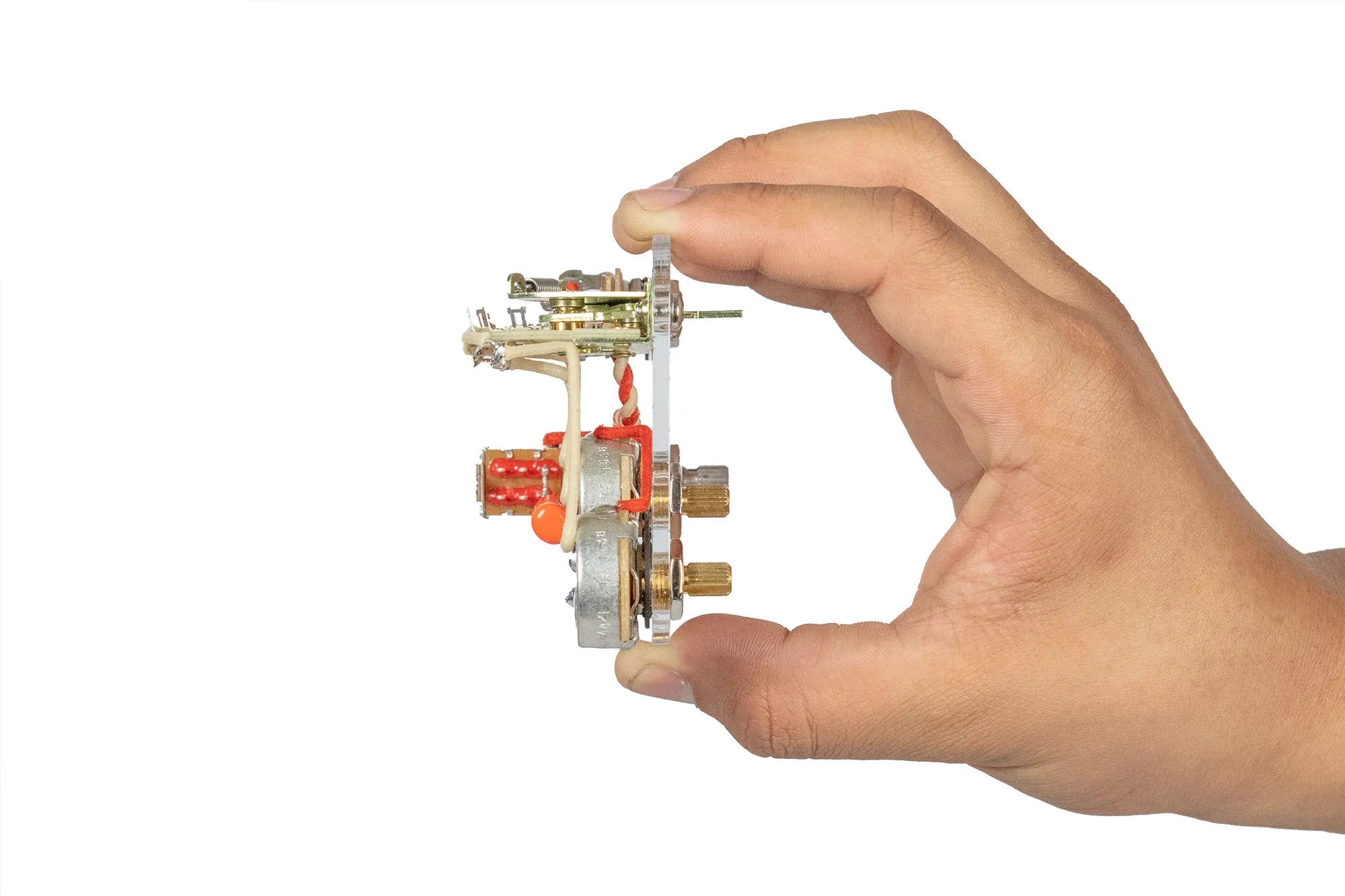

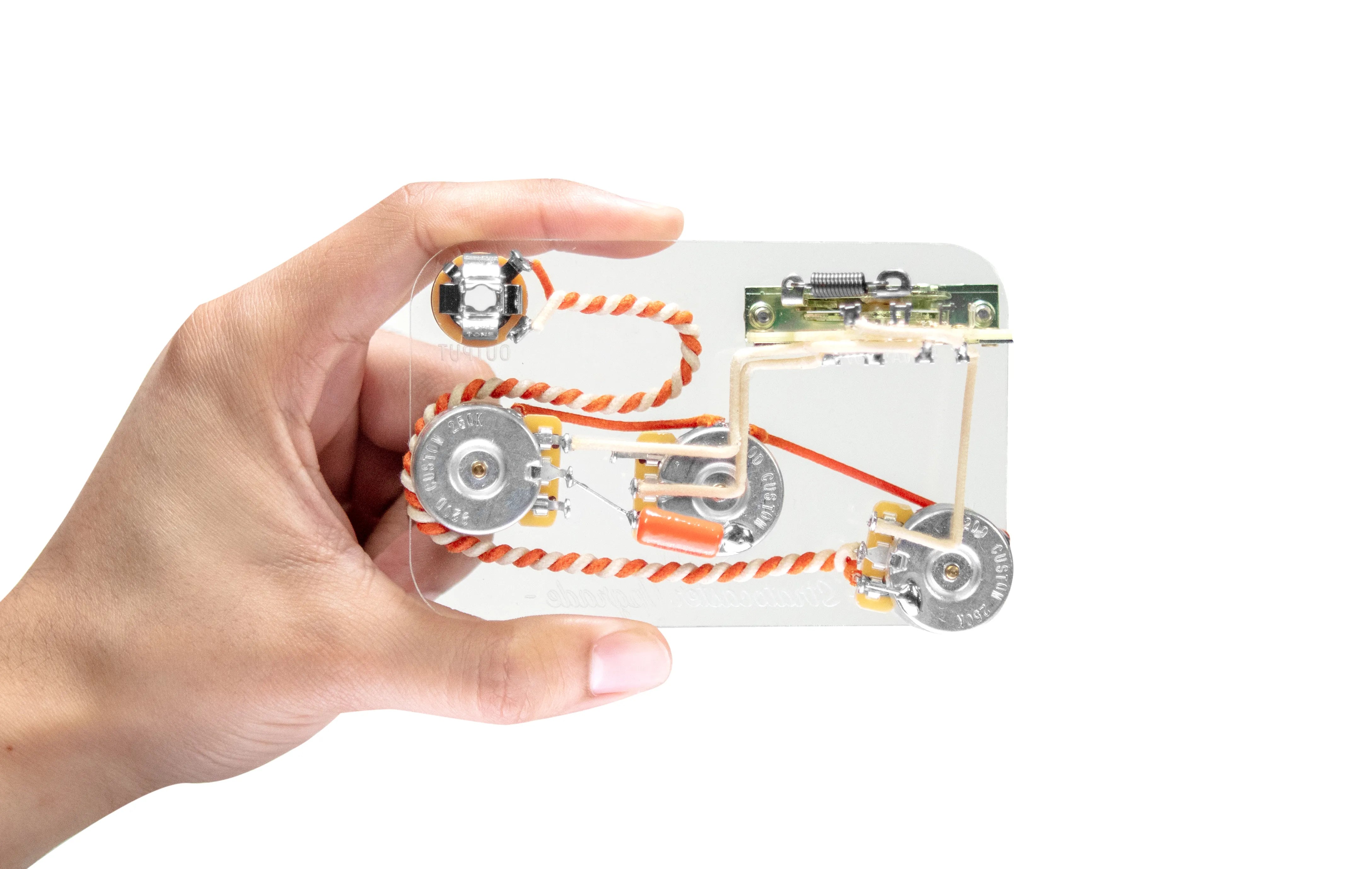

S5W Details:
1 Volume, 2 Tone
- 3 - 920D Custom 450G Series 250K Pots by CTS
- 1 - Genuine CRL USA 5-Way Switch
- 1 - .022 Orange Drop Capacitor by Sprague Electric
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavit Wire
- Made in USA
S7W Details:
The 920D Custom S7W 7-Way Wiring Harness will rock your world. This wiring harness allows 2 additional pickup configurations for your standard S style guitar. The push/pull pot turns on the neck pickup allowing you to have the bridge and neck on and all 3 pickups on together. These 2 added pickup combinations, along with our top notch wiring, will make your tone stand out.

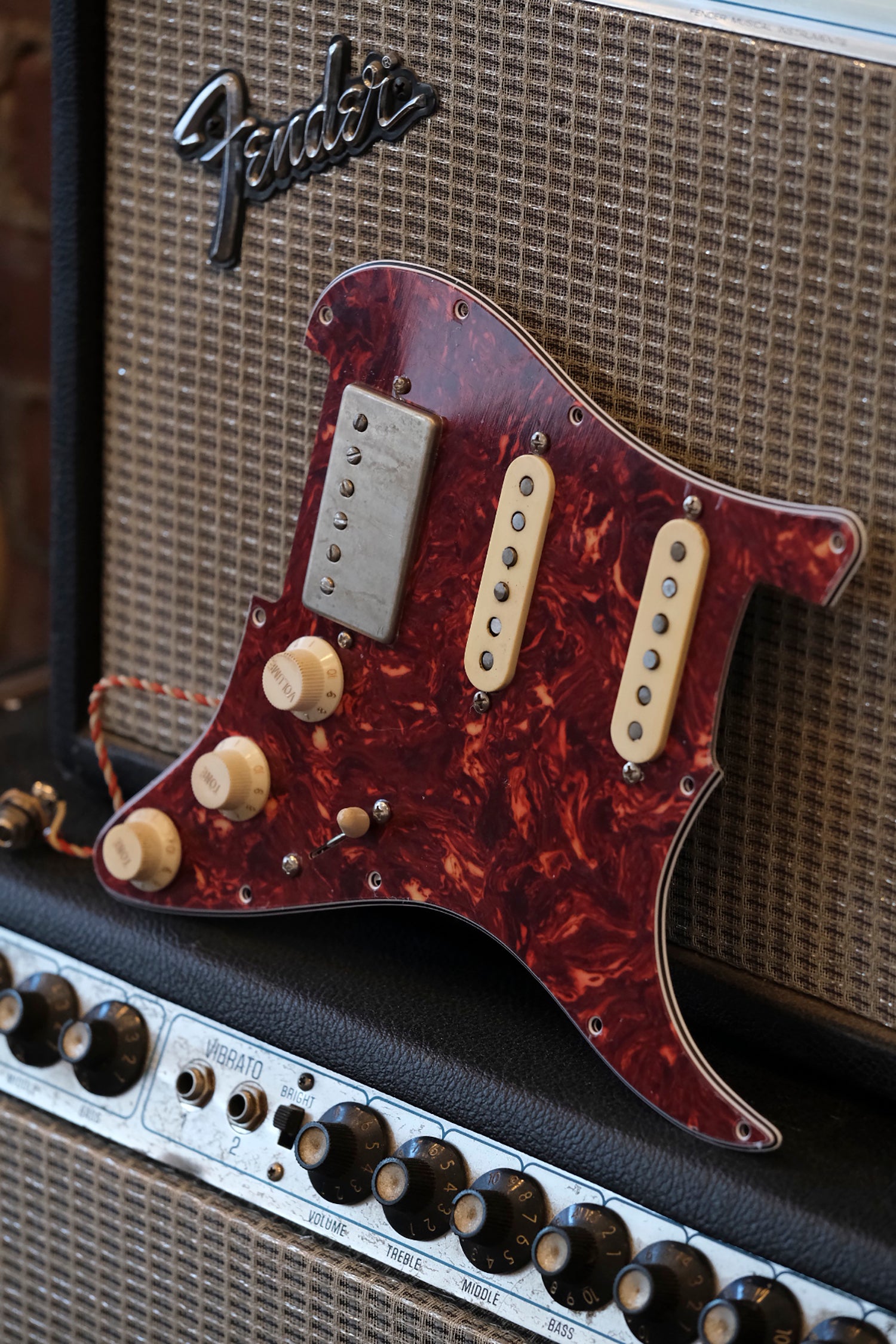

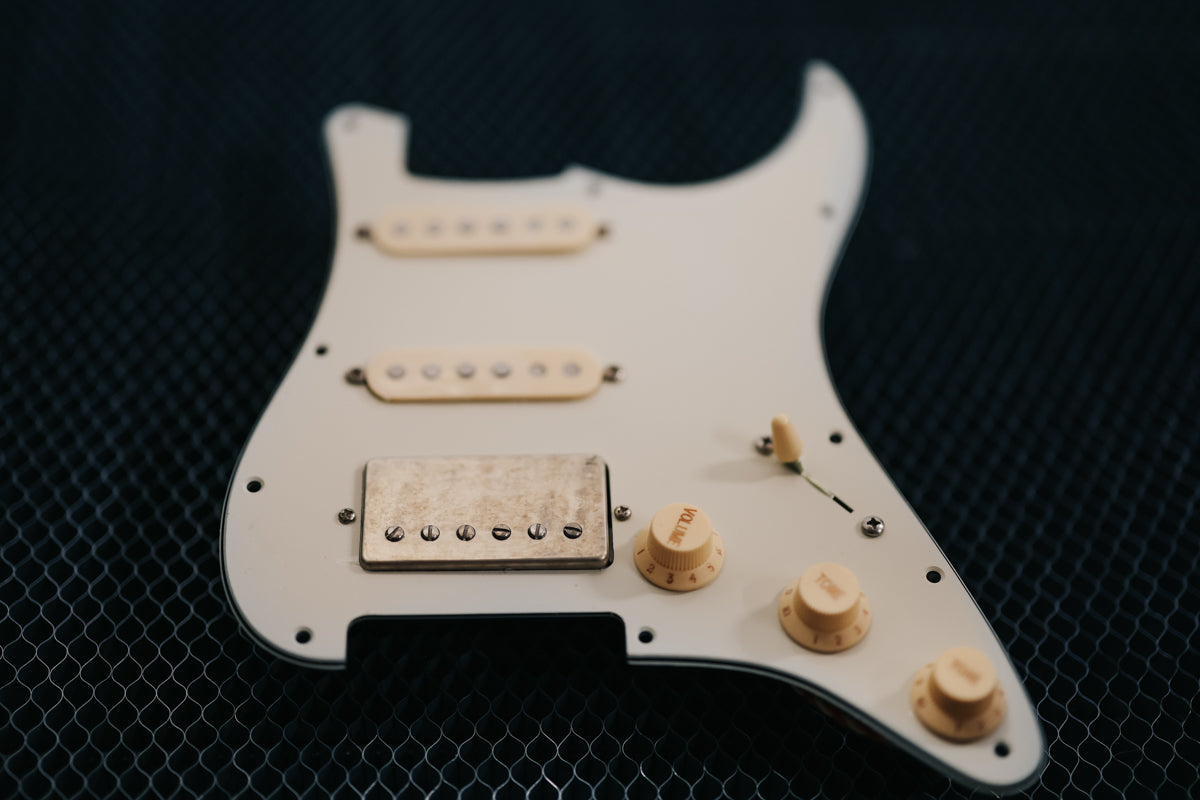

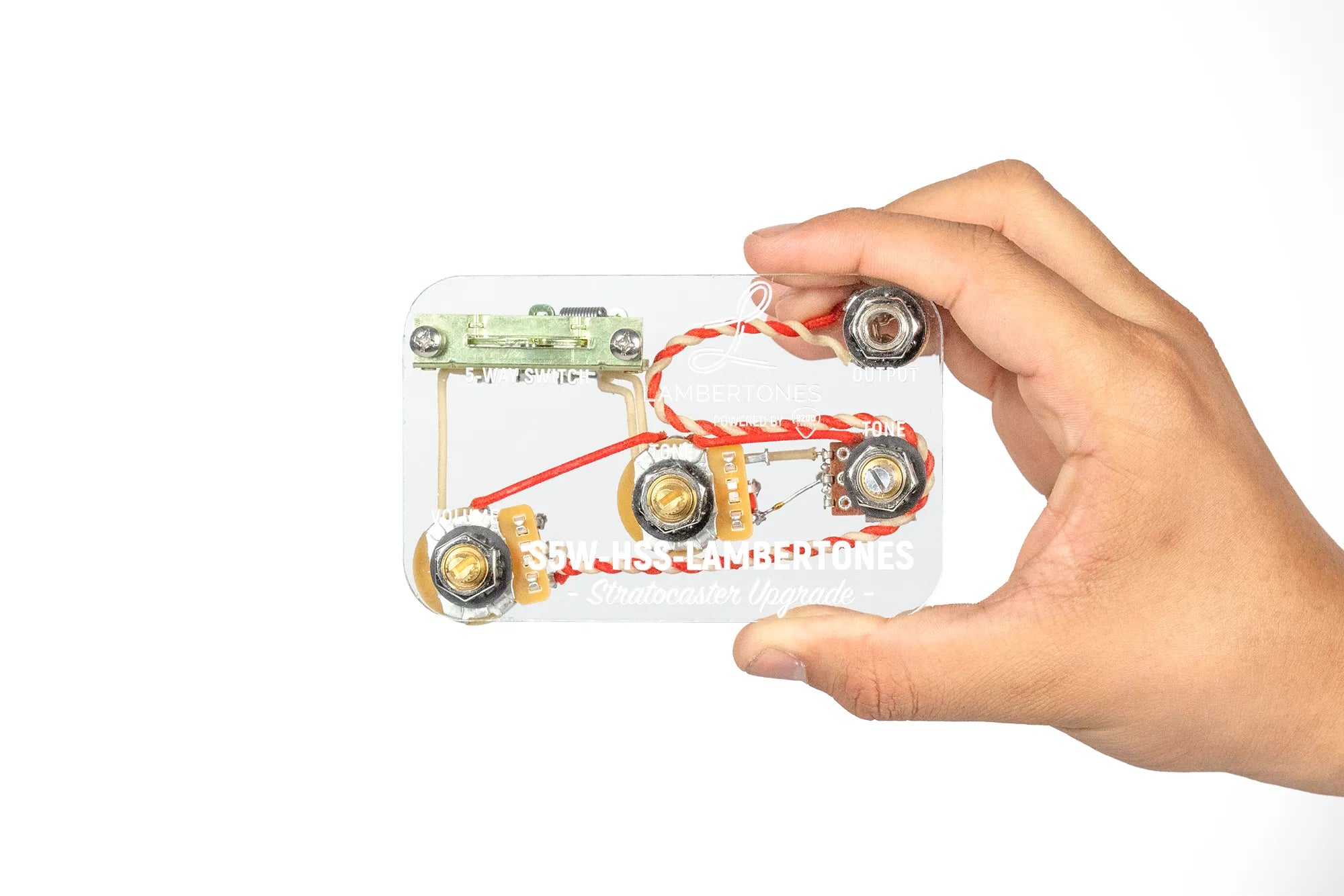

S5W-HSSL:
The 920D Lambertones Custom S5W-HSSL harness is designed for guitars with a full sized humbucker in the bridge position. It features a standard Oaks 5-way switch. This has a push/pull 2nd tone knob that not only affects the Bridge humbucker tone but also allows you to split-coil the bridge humbucker on command for a single coil-vibe in position 1 or an authentic SSS style position 2 tones.
S5W-Split Tuning (Solderless):
This harness is made for us exclusively by Obsidian Wire in New Zealand. It features a trim pot to dial in your perfect coil-split tone by affecting the resistance value in our signature "partial-coil-split" method. Similar to the PRS coil-split technology, but ours is completely variable for the ultimate control. Standard 5-way position controls but with a push/pull 2nd tone to activate that coil-split. Completely solderless for the easiest and tool-less installation process.
Choose options
Technical Specs
3.6k DCR
Polarity: North
String Spacing: 52mm
4.1k DCR
Polarity: South
String Spacing: 52mm
3.95k DCR
Polarity: South
String Spacing: 52mm

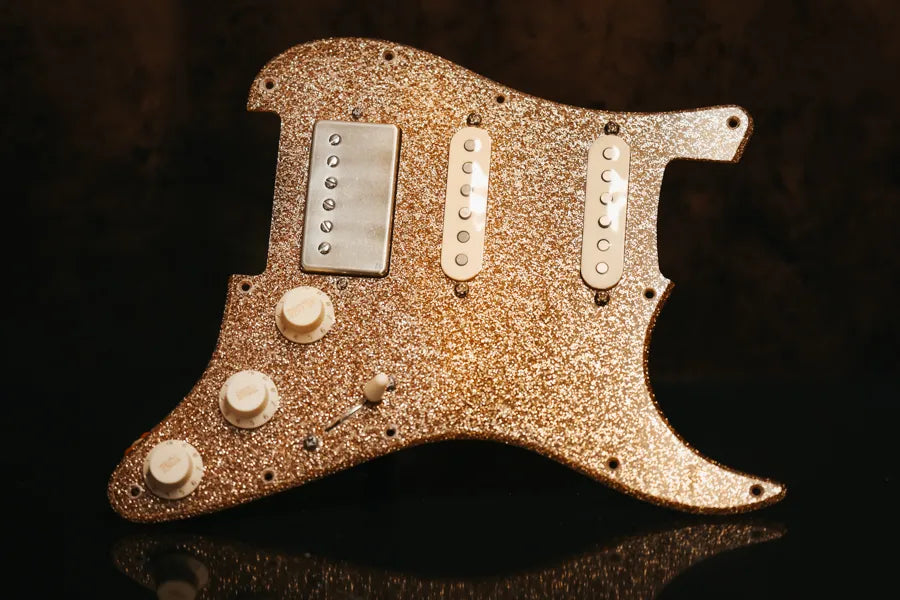

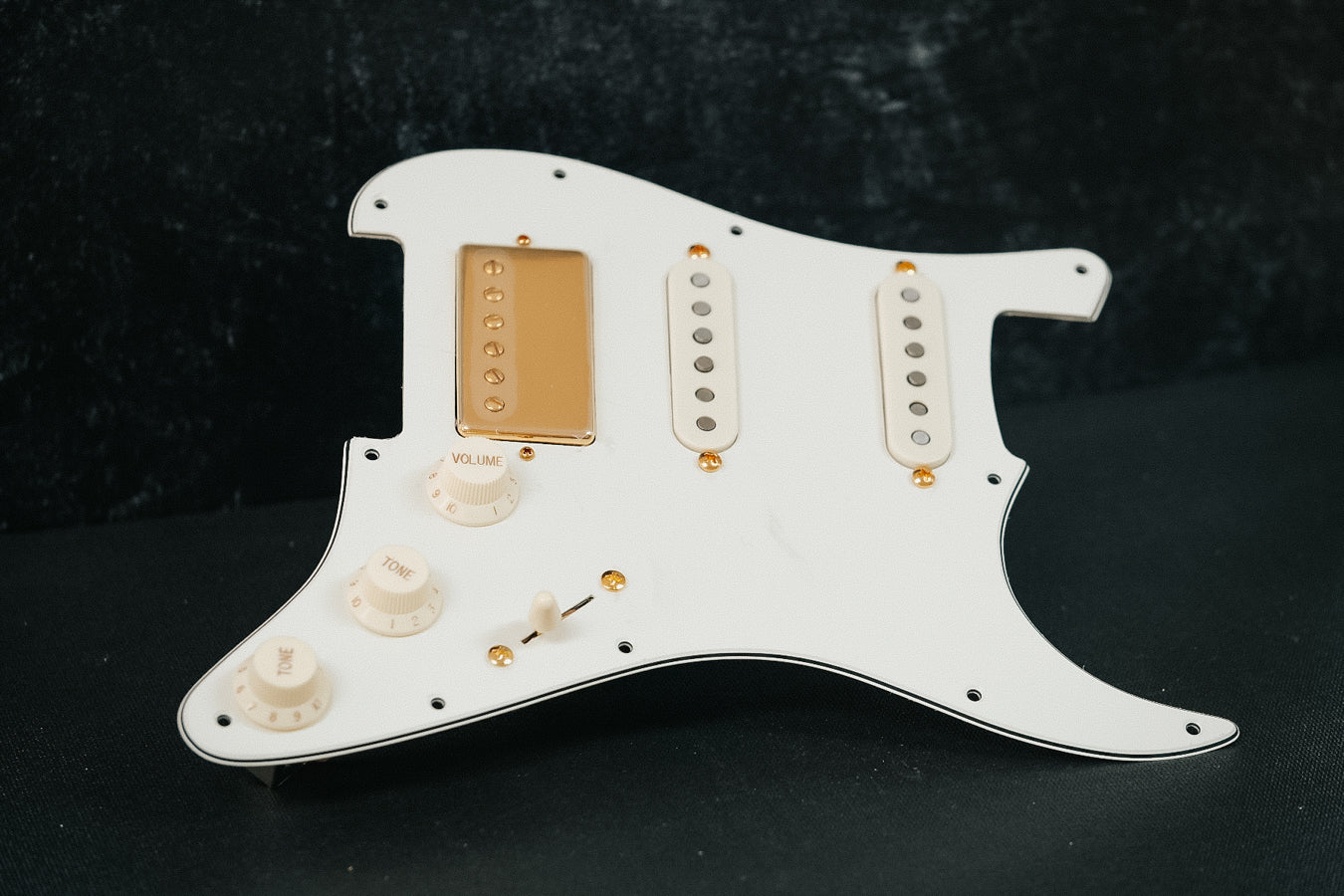

- If you select the HSS or HSH configuration the humbucker will come automatically with our 4-wire configuration for coil-splitting capabilities.
- Choose FLAT Magnet Radius for a neck radii between 9.5"-16"+.
- Choose STAGGERED magnet radius for a neck radii between 7.25-9.5"
- HSS/HSH Wiring Color Codes:
Black: Ground
Bare: Ground
White: Screw coil finish (can be soldered to red for standard humbucker sound)
Red: Slug coil finish (can be soldered to white for standard humbucker sound)
Green: Hot to the switch
drop in
tone ready

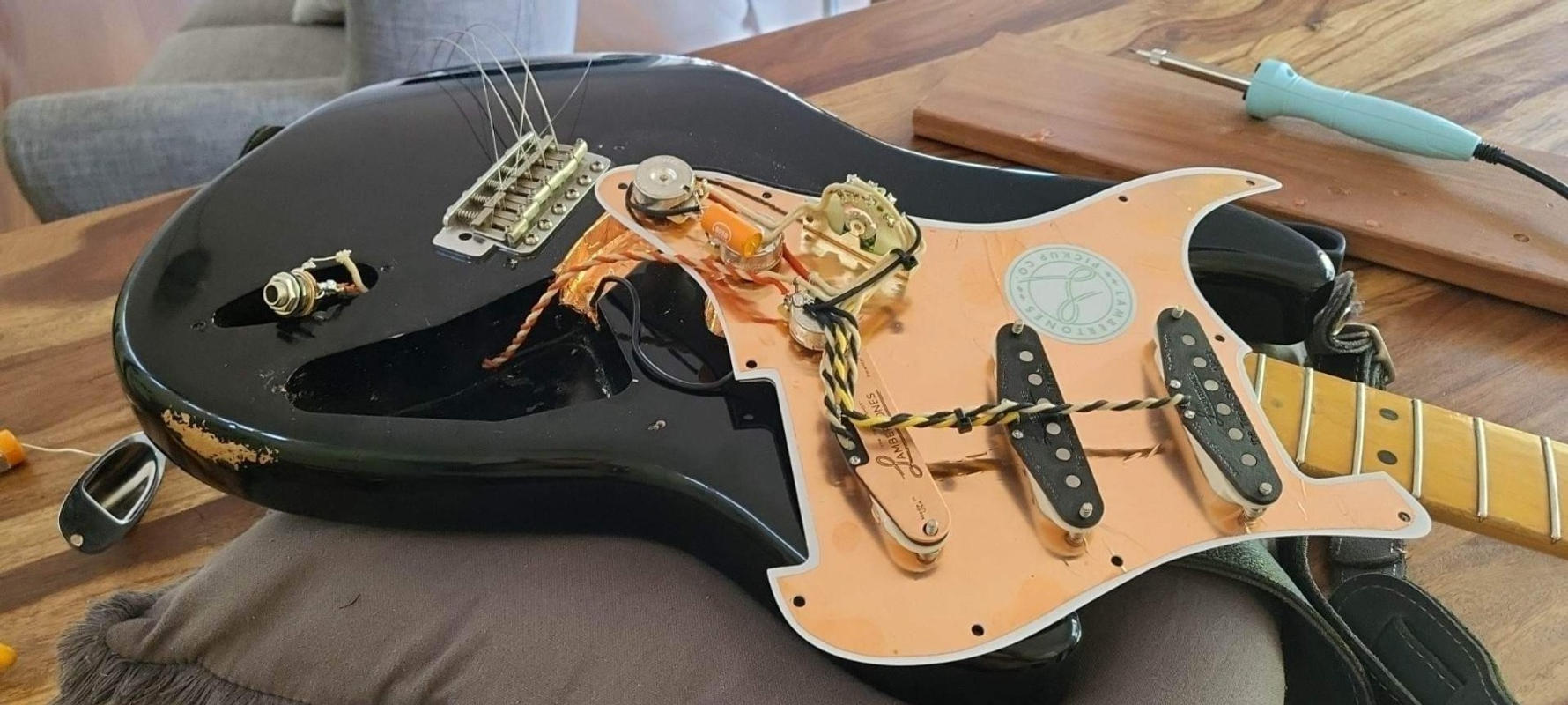

Our loaded pickguards come tested and fully-assembled. Simply solder your guitars body/bridge ground to the new pickguard, attach the output jack, and you're done!
let us do the hard part
dialed in
With a Lambertones Loaded Pickguard, all you have to do it drop it in. Let us do the hard part with 99% of all the critical solder points, shielding, cable routing, etc - and you can enjoy the best part; unbelievable guitar tone.
Designed to be Different
Precision Wound
We fully believe a product should be able to stand on its own, where the location of manufacturer doesn't automatically qualify/disqualify it from a perceived quality. That said, we're proud to design, manufacture, wind, fulfill in house here at our shop in Southern California.
Made in the usa
We fully believe a product should be able to stand on its own, where the location of manufacturer doesn't automatically qualify/disqualify it from a perceived quality. That said, we're proud to design, manufacture, wind, fulfill in house here at our shop in Southern California.
Crafted with care
Premium Materials

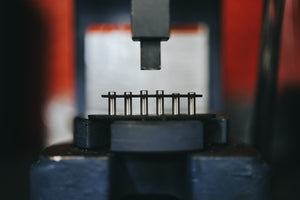

All Triple Shot sets utilize in-house laser-cut vulcanized fiberboard for each bobbin. Each magnet is individually tapered to a modern edge.
Flat and Staggered magnet options for the appropriate neck radius for an optimal tonal experience.
Flexible Application
Our Triple Shot uses the highest quality possible pre-tinned cloth push-back wire from Gavitt to protect your signal chain from the very beginning.
With the HSS or HSH configuration, you're getting fully-shielded 4-wire conductor to allow for the ultimate in wiring possibility for coil-splitting if desired.
Shipped with style
Premium Packaging
Every pickup set comes in its own premium box with laser cut foam ensuring a snug and secure transport. Included polishing cloth helps keep those new covers nice and shiny.
