Universal Tele Wiring - Solderless (HH, HS, SH & SS)

$105.00 Regular price
Unit price
per
Shipping calculated at checkout.

We've partnered with the ultimate solder-less and convenient wiring guru, Obsidian Wire, to build the ultimate UNIVERSAL Tele-style wiring harness to complement ANY of our pickup set configurations.

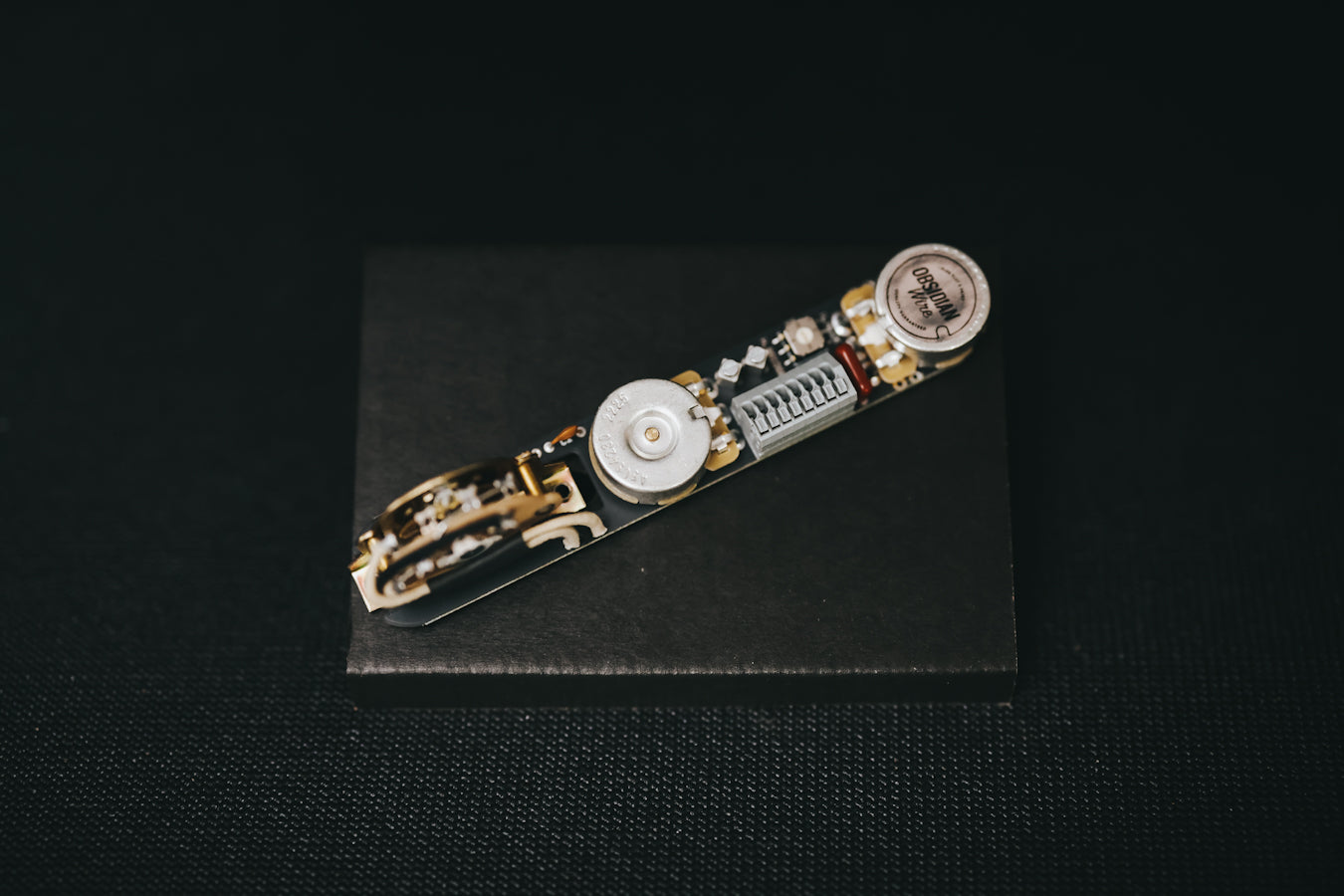

Harness Name: "T3 Universal" Tele 3-Way Control Plate

FOR HUMBUCKER AND SINGLE COIL LOADED TELECASTERS®

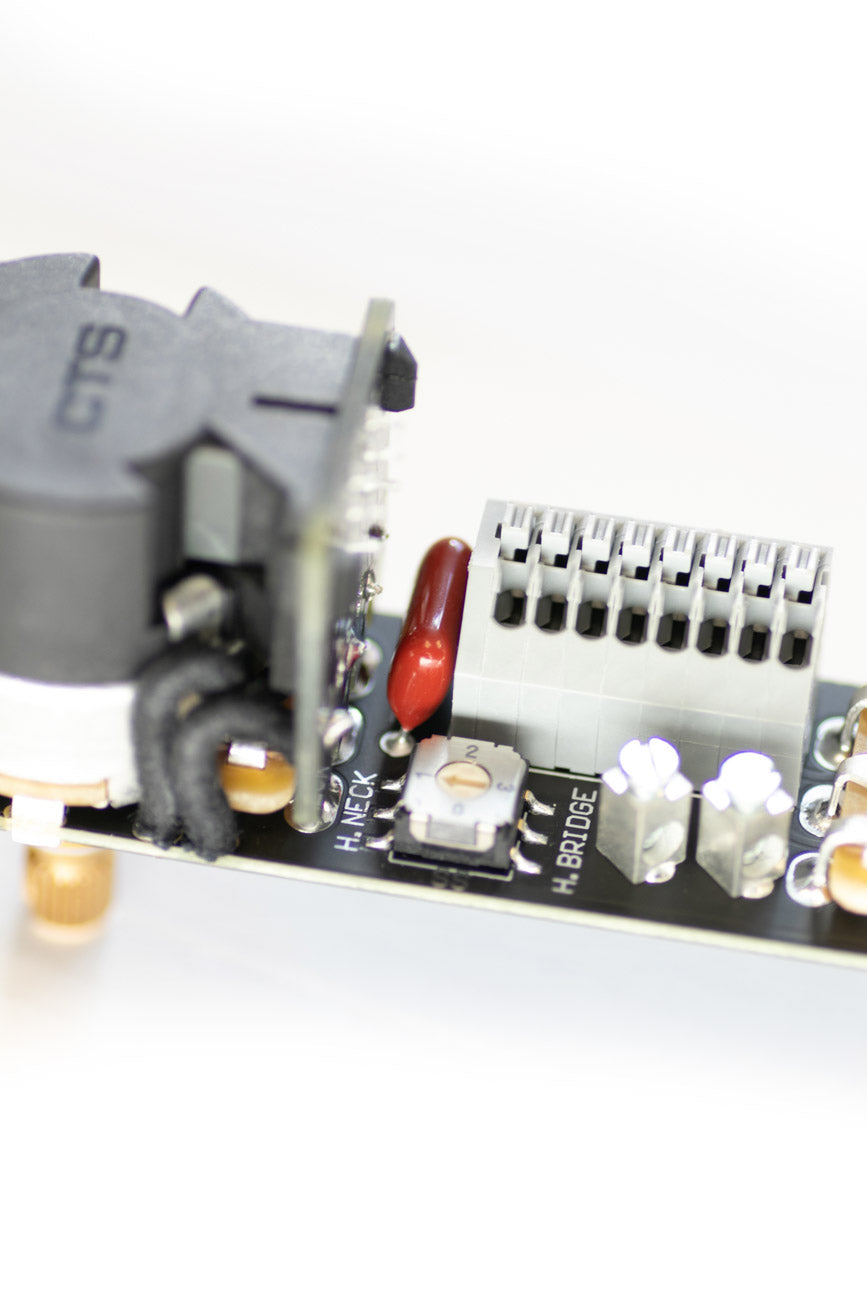

This wiring harness is a universal model made to be a perfect set for your humbucker-loaded Telecaster, with an added fourth mode for two single coils for ultimate versatility. Select the mode from the Obsidian Smart switch, and you are set. This harness is the perfect match for you if you have Telecaster loaded with the below pickups:

  • Mode 1. HH Tele (Humbucker + Humbucker)
  • Mode 2. HS Telecaster (Humbucker Neck + Single Coil Bridge)
  • Mode 3. SH Telecaster (Humbucker Bridge + Single Coil Neck)
  • Mode 4. SS Tele (Two Single coils / traditional Tele mode)

Why have different modes?

Humbuckers and single coils have different characteristics that require different things from a wiring harness to really let out their best qualities. The Obsidian® Universal for Tele harness allows you to easily set up your harness to automatically optimize the controls for each switch position, and thus, each of your pickups. 500k Controls for your humbuckers - Clearer, fuller humbucker output. More resistance through your tone and volume controls means less treble escapes. 250k Controls for your single coils - Balanced single coil spank. The harsh highs of a raw single coil are sent to ground, leaving a harmonically rich but balanced single coil sound. The Four Modes Explained

  • MODE 1: HH Telecaster (Two Humbuckers) Turn the dial to 'HH' for your Telecaster loaded with double humbuckers. You will get an optimized set of tone and volume controls with 500k pots, and a 0.022uf capacitor, for full clear output in all three switch positions. Master Volume & Tone controls: (500k for full clear output)
  • MODE 2: HS Telecaster (Humbucker Neck + Single Coil Bridge Pickup) Turn the dial to 'HS' for your Telecaster loaded with a humbucker in the neck position, and a single coil in the bridge position. You will get an optimized set of tone and volume controls with 500k pots for the humbucker for full clear output, and 250k pots for the single coil position to help tame the excess highs. Switch Positions 1: Bridge Pickup (250k balances single coil highs) 2: Bridge + Neck Pickup (250k optimized for humbucker & single coil mix) 3: Neck Pickup (500k for full clear output)
  • MODE 3: SH Telecaster (Humbucker Bridge + Single Coil Neck Pickup) Turn the dial to 'SH' for your Telecaster loaded with a humbucker in the bridge position, and a single coil in the neck position. You will get an optimized set of tone and volume controls with 500k pots for the humbucker for full clear output, and 250k pots for the single coil position to help tame the excess highs. Switch Positions 1: Bridge Pickup (500k for full clear output) 2: Bridge + Neck Pickup (250k optimized for humbucker & single coil mix) 3: Neck Pickup (250k balances single coil highs)
  • MODE 4: SS Telecaster ( Two Single Coils) Also perfect for Single coil-sized humbuckers Call this bonus mode, just in case you ever want to convert your Tele back to a traditional SS, or two single coil Telecaster. This mode will give you a set of standard 250k controls with a 0.022uf capacitor for balanced tone and volume controls. This is also perfect for using single coil-sized humbuckers, which are often designed to work best with 250k pots. Master Volume & Tone controls: (250k for full clear output)

CRYSTAL CLEAR TONE

To make your tone crystal clear at lower volumes we also include an Obsidian® Custom Spec Treble Bleed Mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

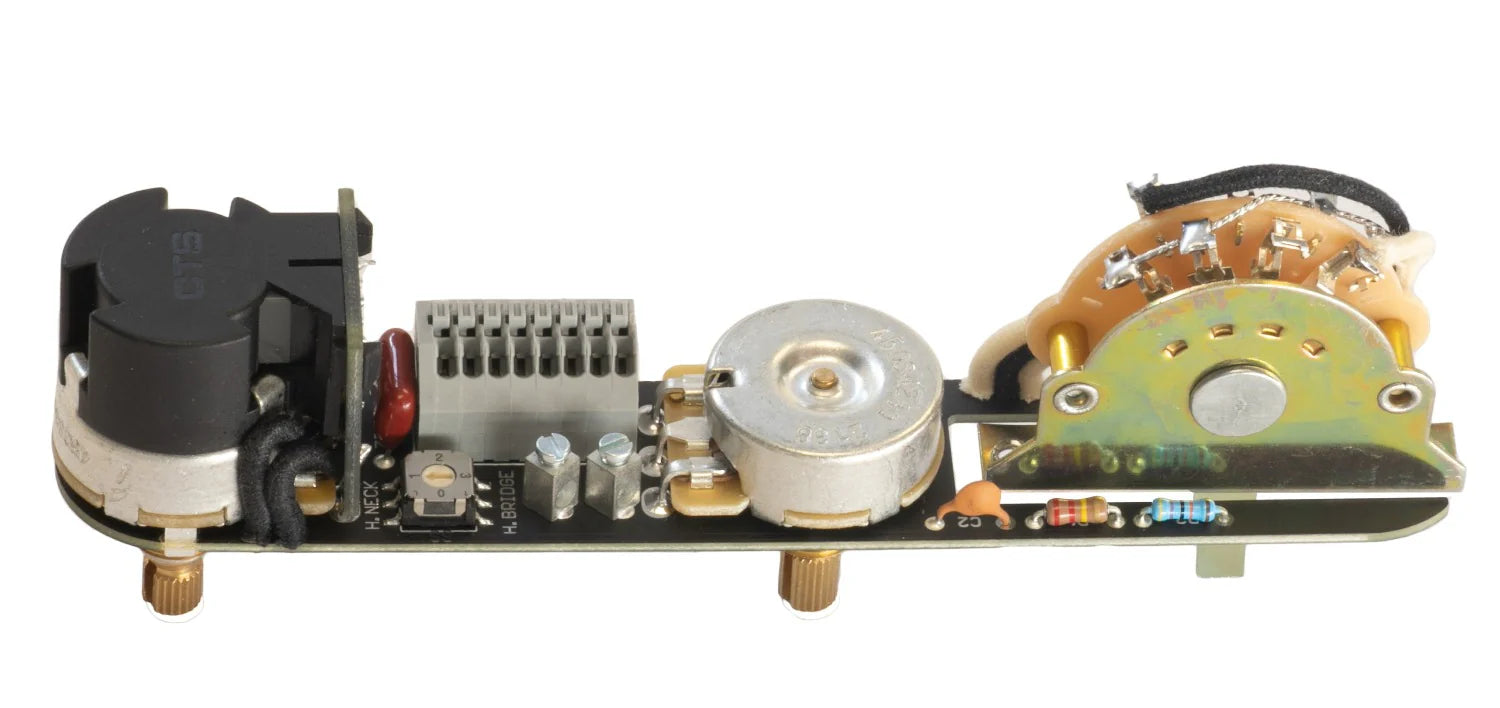

COMPONENTS

  • Potentiometers: Obsidian® Custom CTS® Pots (+/-10%) Split Shaft 24 Spline with 1/4" Adapters
  • Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)
  • Switch: Genuine Oak® 3 Way Switch
  • Jack: Pro-Wired Switchcraft® J11 Mono
  • Made in New Zealand

SWITCH POSITIONS

Position 1 - Bridge

Position 2 - Bridge/Neck

Position 3 - Neck

COMPATIBILITY

  • Fits: Fender® US & MIM Telecaster® - Direct Fit // Right Hand Guitar Only
  • Fits: Fender® Japan Telecaster® - Replace control plate & knobs
  • Fits: Squier® Telecaster® - Replace control plate & knobs
  • Knobs: Requires US Spec 1/4" Solid Shaft Knobs

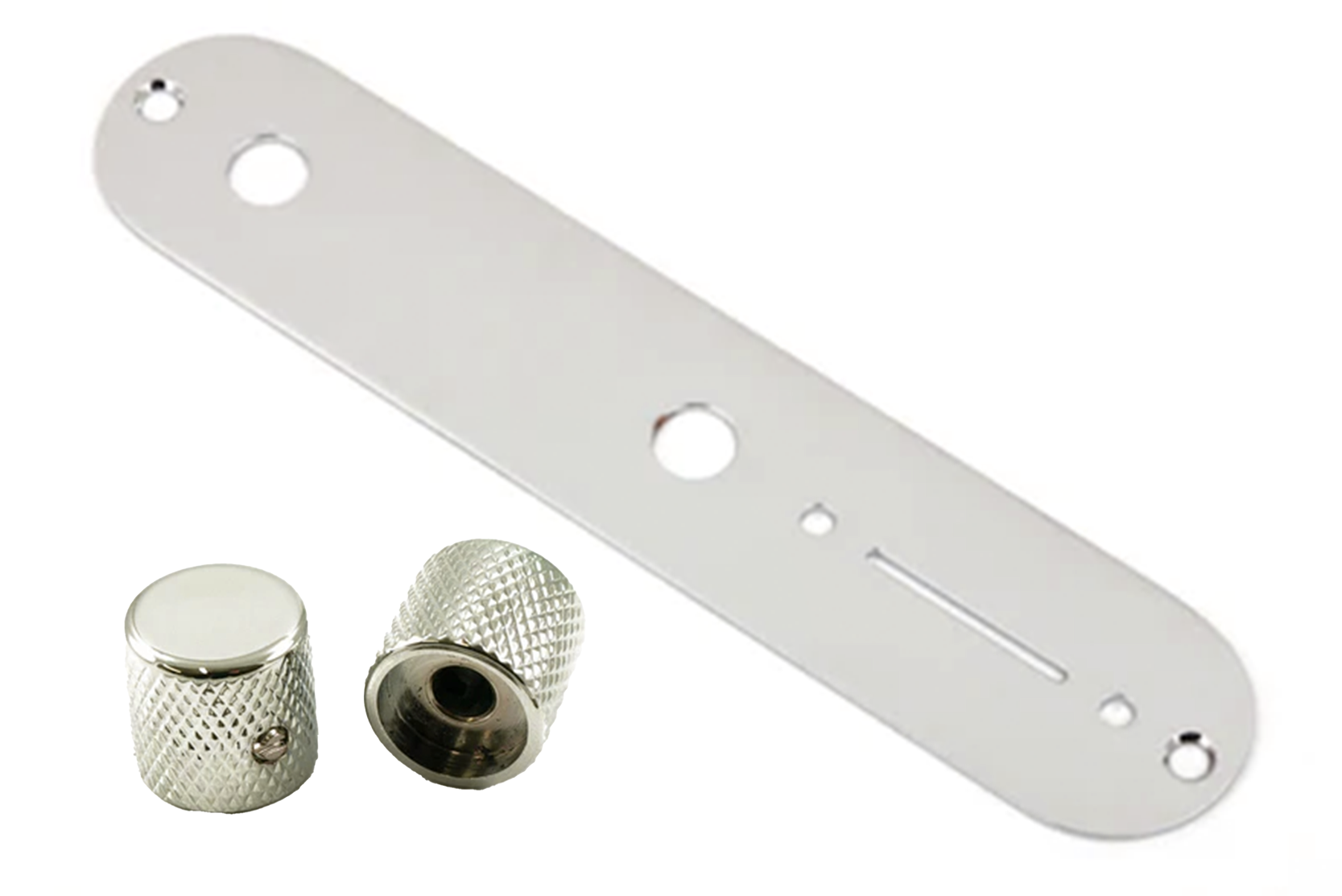

  • Control Plate: Use Genuine Fender or Obsidian® plate only - Other aftermarket plates will NOT fit
  • Pickups: Built for any combo of two humbuckers, single coils, or P90s.
  • Coil Split Upgrade: Requires Compatible Split Coil (Four Conductor) Pickups
  • Does NOT Fit: Thinline telecaster, or any guitar not specified above



Ships with pickups unless ordered separately.
