Jazzmaster Wiring Harness w/Series/Parallel (500k Pots)

We've partnered with 920D Custom, the best in the business, to build the ultimate custom Lambertones wiring harnesses to complement our pickups.

Harness Name: JMH - 500SP

Works with: "the Ristretto" JM set & "the Crema/Grinder/Red Eye" for JM Set.

There are two reasons why this harness is for you:

(1) You're tired of the rhythm circuit, or don't have a rhythm circuit and want to upgrade your wiring harness or install Lambertones Pickups into your Jazzmaster. If you need a new pickguard to accompany your new harness, please visit our Loaded Pickguard builder HERE.

(2) You're tired of the single-coil hum and want to install our JM "Crema" humbuckers.

Both reasons are valid for replacing your stock harness, and this does not disappoint. Nothing was spared in this custom wiring harness, which our friends at 920D Custom in Arkansas built specially for us at Lambertones.

JMH 500SP fits the following Fender models:

• Fender American Performer
• Fender American Professional
• Fender American Special
• Fender Blacktop
• Fender Special Edition HH

Please note this harness works with offset guitars designed WITHOUT a rhythm circuit, and the toggle switch and wiring can be mounted in either the upper or lower horn.

Details:

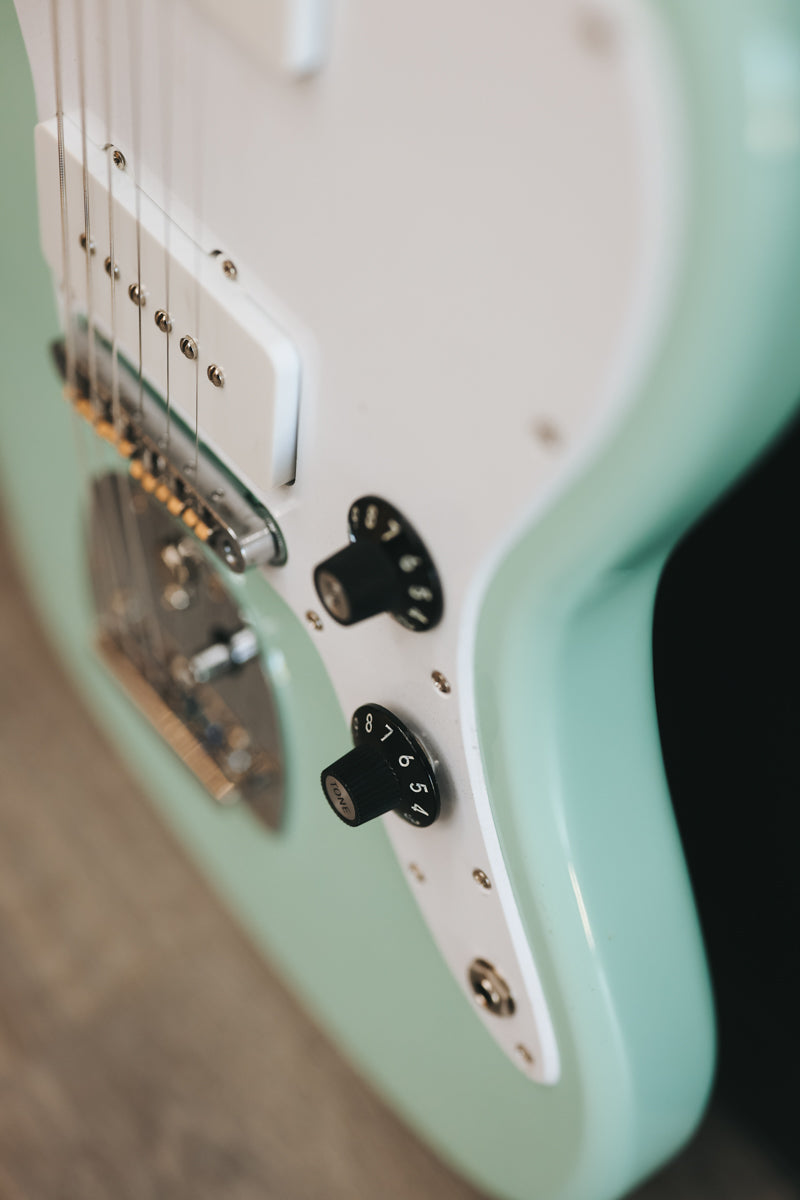

1 Volume, 1 Tone

• 920D Custom Vintage Cloth Wire
• (1) 920D Custom 450G Series 500K Pots by CTS
• (1) 500k Alpha Push/Pull Pot
• Modern 50's style tone circuit
• Switchcraft Right Angle Toggle Switch
• Switchcraft On-On Slider Switch
• Pure Tone Output Jack
• Orange Drop Capacitor
• Comes installed on a laser-cut plexiglass plate
• Made in USA

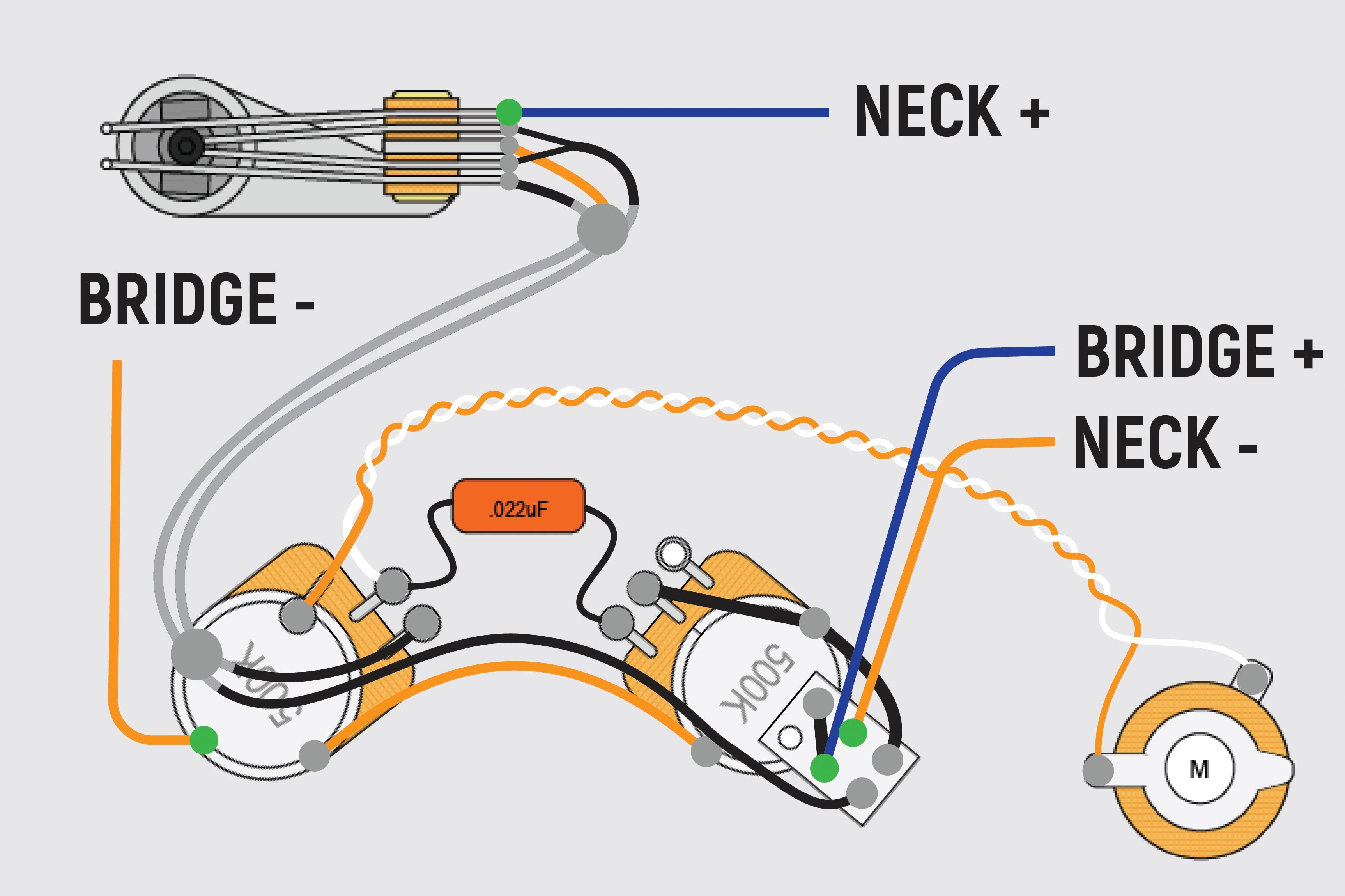

Switch Positions:

Position 1 Push/Pull Down - Bridge

Position 1 Pusn/Pull UP - Kill switch

Position 2  Push/Pull Down - Bridge/Neck in Parallel (hum-cancelling with Ristretto set)

Position 2 Push/Pull UP - Bridge/Neck in Series

Position 3 Push/Pull Down - Neck

Position 3 Push/Pull UP - Neck/Bridge in Series

Ships with pickups unless ordered separately.
